Mar-M246 is a kind of Nickel-based casting alloy which is strengthen by the precipitation phase. It has high persistent strength and creep rupture strength at 650-1040℃which simultaneously has good anti-oxidation property and be good at casting complex shape castings as well as making a single turbo.
Beiye designation | China Standard designation | American designation |
Mar-M246 | Mar-M246 | Mar-M246 |
Engine nozzle
Guide vanes

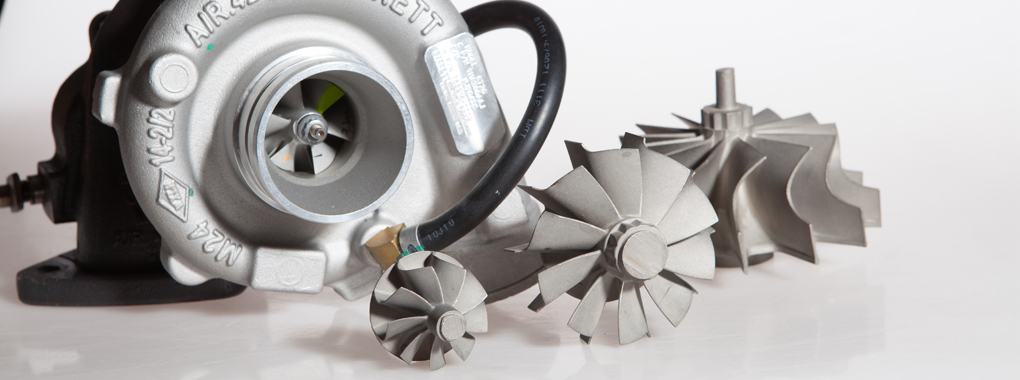

Turbo
C | 0.156 | Cr | 9.52 |
Ti | 1.62 | Al | 5.45 |
Co | 9.99 | Mo | 2.53 |
W | 10.30 | Ni | bal. |
Casting | |
Hardness | HRC35~4 |
| HV390~420 | |
Tensile At 25℃ | |
| Castig | |
Tensile Strength | 1025 MPa (123.98ksi) |
Yield Strength | 860 MPa |
| Elongation | 6.2% |
| Heat Treatment | |
Tensile Strength | 1080 MPa (123.98ksi) |
Yield Strength | 875 MPa |
| Elongation | 6.5% |
High Temperature Tensile At 700℃ | |
| Heat Treatment | |
Tensile Strength | 1050 MPa (123.98ksi) |
Yield Strength | 860 MPa |
Elongation | 6.0% |
High Temperature Rupture At 980℃ 200Mpa | |
Rupture Life | ＞50h |
The melting temperature | 1220~1355℃ | ||
Density | 8.5g/cm3 | ||
