Expansion Alloys & Thermal Expansion Alloys Manufacturer

Beiye produces a broad range of Fe-Ni and Fe-Ni-Co thermal expansion alloys under Chinese 4J-series and Beiye BYP designations. The table below provides commonly associated international designations for material identification and preliminary comparison. Final grade equivalency should be confirmed according to chemical composition, CTE range, applicable standard and end-use requirements.

The table should be used as a preliminary grade reference rather than as confirmation that every designation is automatically interchangeable.

When evaluating equivalent expansion alloy grades, engineers should compare:

• Chemical composition

• Coefficient of thermal expansion

• Applicable temperature range

• Mechanical properties

• Heat-treatment condition

• Magnetic characteristics

• Applicable material standard

• Final component requirements

For example, 4J29 / Kovar is typically associated with controlled expansion and sealing applications, while 4J36 / Invar 36 is selected primarily for very low thermal expansion and dimensional stability. Similarly, 4J42 / Alloy 42 is used where a controlled Fe-Ni expansion characteristic is required.

Although the terms are sometimes used together, controlled expansion alloys and low expansion alloys are not exactly the same.

A controlled expansion alloy does not necessarily have the lowest possible CTE. In many applications, the objective is instead to ensure that the alloy expands at a predictable rate that closely matches another material.

For glass-to-metal or ceramic-to-metal sealing, matching the expansion behavior of the materials helps reduce thermal stress during heating and cooling.

For precision instruments, optical systems, or dimensional reference structures, the priority may instead be minimizing thermal expansion as much as possible.

The required expansion alloy depends strongly on how temperature affects the final component.

Glass-to-Metal and Ceramic-to-Metal Sealing

When metal is joined to glass or ceramic, differences in thermal expansion can create stress during heating and cooling.

If the CTE mismatch is too large, the joint may experience cracking, leakage, distortion, or premature failure.

Controlled expansion materials such as Kovar-type and Alloy 42-type alloys are therefore commonly considered for:

• Hermetic packages

• Electronic feedthroughs

• Vacuum components

• Glass-sealed terminals

• Sensors

• Semiconductor packages

Precision Instruments and Metrology

Dimensional stability is critical in measuring equipment and precision mechanical structures.

Low thermal expansion materials can help reduce temperature-related dimensional changes that influence calibration, positioning, alignment, or measurement accuracy.

Invar-type alloys are particularly relevant to these applications.

Electronics and Semiconductor Components

Expansion alloys are used in electronic systems where metal components must remain dimensionally compatible with glass, ceramic, semiconductor, or other materials.

Applications may include lead frames, packages, connectors, sealed terminals, and precision electronic assemblies.

The required alloy depends on both thermal expansion and electrical, magnetic, mechanical, and fabrication requirements.

Aerospace and Optical Systems

Aerospace and optical equipment can experience wide temperature changes while still requiring precise dimensional control.

Expansion alloys may therefore be used in precision frames, mounts, measuring structures, optical assemblies, and other components where thermal distortion must be controlled.

Cryogenic and Low-Temperature Applications

Expansion behavior should also be evaluated carefully in cryogenic systems.

A material's room-temperature CTE alone is not enough to determine suitability. Engineers should evaluate the thermal expansion behavior over the actual operating temperature range.

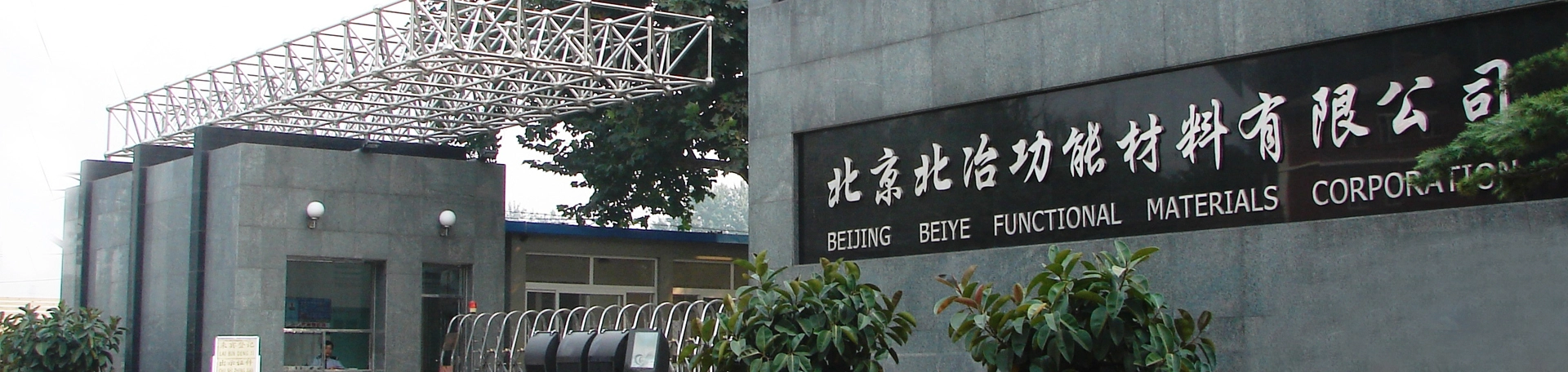

Beiye supports precision expansion alloy applications with material manufacturing and processing capabilities focused on consistency, dimensional control, and precision alloy quality.

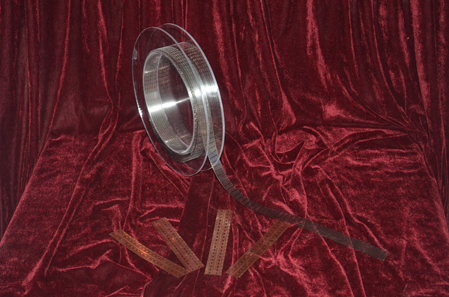

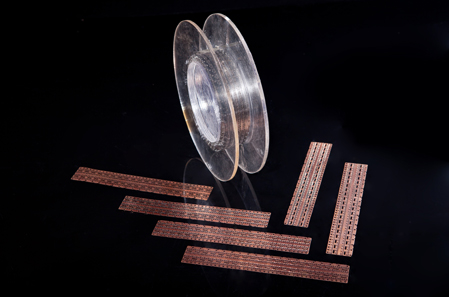

For expansion alloy strip and foil products, Beiye focuses on key manufacturing characteristics such as:

• Thickness accuracy

• Strip and foil flatness

• Dimensional consistency

• Controlled material composition

• Stable processing quality

Beiye's expansion alloy portfolio covers controlled expansion, low expansion, and specialized expansion alloy grades for different industrial requirements.

Our broader precision alloy manufacturing capabilities include processes supporting the production and processing of demanding alloy materials.

When requesting material for a new project, providing complete technical requirements helps Beiye evaluate the appropriate alloy more efficiently.

Useful information includes:

• Required alloy grade or equivalent designation

• Target coefficient of thermal expansion

• CTE temperature range

• Product form

• Dimensions and tolerances

• Heat-treatment condition

• Magnetic requirements

• Final application

• Required quantity

• Applicable material or testing standard

Contact Beiye to discuss expansion alloy selection, equivalent grades, technical specifications, and material requirements for your application.

Selecting a thermal expansion alloy should begin with the required thermal behavior rather than simply choosing a familiar alloy grade.

1. Define the Required Coefficient of Thermal Expansion

Determine the target CTE for the component.

For sealing applications, the required value may be based on the thermal expansion of the glass or ceramic being joined.

For precision dimensional applications, the objective may be to minimize CTE instead.

2. Define the Operating Temperature Range

CTE must always be considered together with temperature.

An alloy's thermal expansion behavior can change across different temperature ranges, so the required performance should be specified over the actual service temperature rather than by a single isolated value.

3. Determine Whether Expansion Must Be Matched or Minimized

This is one of the most important selection decisions.

If the objective is to match glass or ceramic, a controlled expansion alloy may be appropriate.

If the objective is maximum dimensional stability, a low expansion alloy such as an Invar-type material may be more suitable.

4. Consider Magnetic Requirements

Some Fe-Ni expansion alloys also have significant magnetic characteristics.

For applications where magnetic response is undesirable, a non-magnetic controlled expansion material may need to be evaluated.

5. Consider Fabrication and Final Component Design

Material selection should also account for how the alloy will be processed.

Important considerations may include:

• Rolling

• Stamping

• Forming

• Drawing

• Machining

• Welding

• Heat treatment

• Glass or ceramic sealing

Component geometry, residual stress, heat treatment, and manufacturing tolerances can all influence final dimensional and material performance.

What are expansion alloys?

Expansion alloys are precision metal alloys designed to provide controlled or low thermal expansion over defined temperature ranges. They are commonly based on Fe-Ni or Fe-Ni-Co compositions and are used where temperature-related dimensional changes must be carefully managed.

What is a thermal expansion alloy?

A thermal expansion alloy is a material engineered to provide predictable dimensional change when temperature varies. Depending on the alloy, the goal may be to achieve low expansion, a specific CTE, or thermal expansion that matches glass, ceramic, or another material.

What is the difference between controlled expansion and low expansion alloys?

Controlled expansion alloys are designed to achieve a specified thermal expansion characteristic, often to match another material. Low expansion alloys are specifically designed to minimize dimensional change. Therefore, a low expansion alloy is a type of expansion-control material, but not every controlled expansion alloy is a low expansion alloy.

What alloys have low thermal expansion?

Fe-Ni alloys from the Invar family are among the best-known low thermal expansion materials. 4J36 / Invar 36 is commonly used where dimensional stability is important, while other low-expansion grades may be selected for different temperature ranges and performance requirements.

What expansion alloys are used for glass-to-metal sealing?

Fe-Ni and Fe-Ni-Co controlled expansion alloys are commonly used for glass-to-metal sealing because their CTE can be selected to match particular glasses. 4J29 / Kovar and 4J42 / Alloy 42 are representative materials used in sealing and electronic applications.

How do I select an expansion alloy for a specific CTE?

Start by defining the required CTE and the exact temperature range over which it must be achieved. Then consider whether the alloy needs to match another material or minimize dimensional change, followed by magnetic requirements, mechanical properties, product form, fabrication process, and applicable material standards. Beiye can evaluate these parameters when reviewing expansion alloy requirements.
